Haltech Dual Channel Thermocouple EGT Amplifier

The Haltech Thermocouple Amplifier Box allows the user the ability to increase the functionality of their Haltech ECU by using the Haltech CAN system which is fitted to all Platinum Series ECU’s.
The Thermocouple Amplifier Box instantly makes available multiple temperature inputs for monitoring,tuning and logging.
Simply plug in the CAN cable and start using your thermocouple inputs.

The Haltech Thermocouple Amplifier is available in a 2 Channel or 4 Channel Configuration

Includes: Dual Channel Thermocouple Amplifier, Elite CAN cable DTM-4 to 8 pin Black Tyco - 300mm (12")

Notes: Combine two Dual and/or Quad Channel Thermocouple Amplifiers with different CAN ID's (Box A or B) for up to 12 channels (subject to ECU compatibility)

Features:

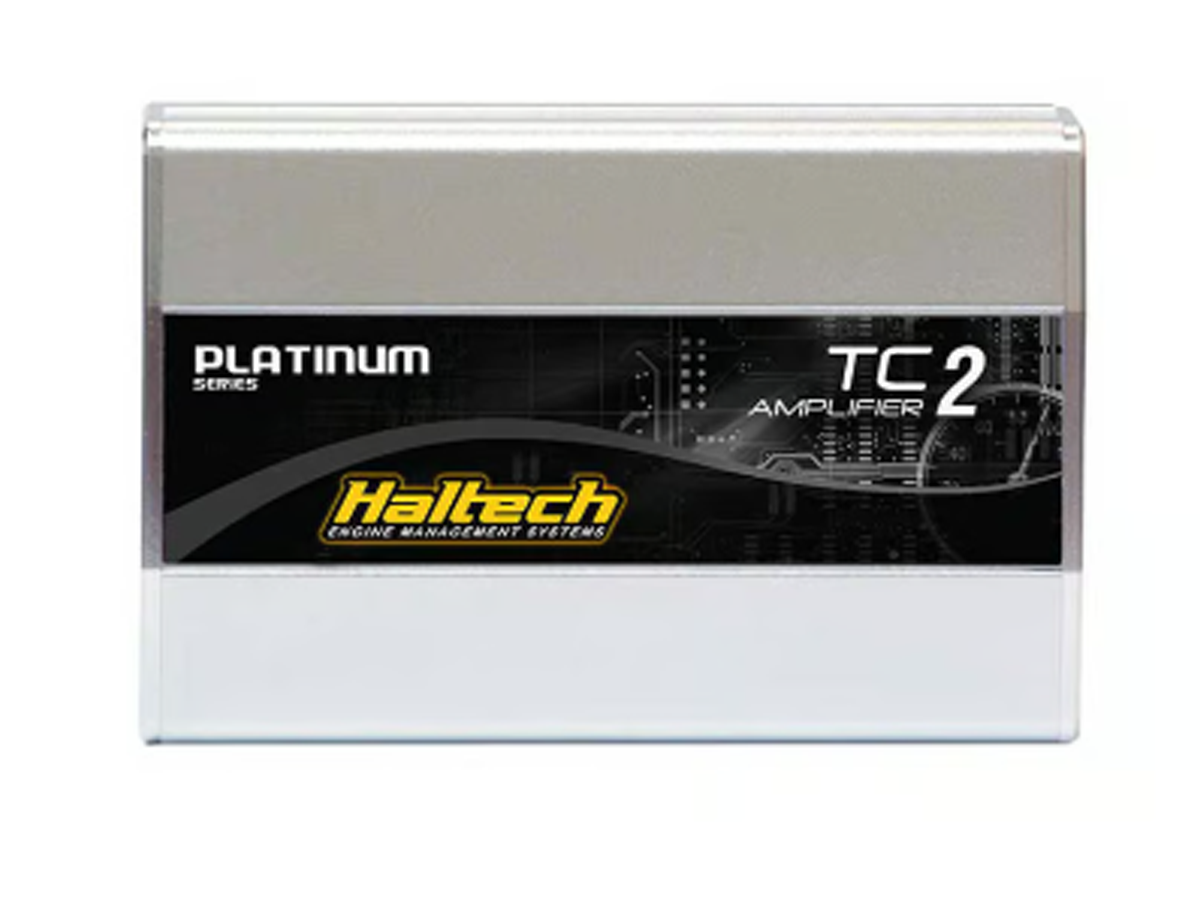

TCA2 – 2 Channel Thermocouple Amplifier – HT059920 / HT059921 (Box A / Box B)
• 2 x Thermocouple Temperature Inputs (K Type only) (0-1250 deg C)
(Thermocouple probes not included.Please contact Haltech for probe sets available)

• Broadcast rate of 20mS to the Haltech ECU for each channel.
• +/- 2deg accuracy via CAN.
• Power and Status LED’s.
• Powered by CAN Bus when used with Haltech Platinum Series ECU’s.
• Analogue Voltage Outputs (0.5 – 4.5V) for each channel.
• Multiple Thermocouple Amplifier Boxes can be used on certain Haltech ECU’s to give up to 12 Channels.

ECU Suitability:

• Sprint 500 – (maximum 1 box)
• Sprint RE – (maximum 1 box)
• Sport 1000/2000 – (maximum 2 boxes)
• Sport GM – (maximum 2 boxes)
• Pro Harness*5 – (maximum 2 boxes)
• Pro Plug-in ECU’s*5 – (maximum 4 boxes)

Power Requirements:

• Source: 8.6 to 16.5 Volts DC
• Consumption: 80mA @ 12Volts DC

Physical Dimensions:

• Length: 95mm
• Width: 64mm
• Height: 28mm

Weight:

• ECU: 150g (0.33 lb)
• Harness: 70g (0.154 lb)

Haltech Thermocouple Amplifier Kit Includes:

• Haltech Thermocouple Amplifier Box
• CAN direct connection cable (600mm)
